PDF Report

Click to expand
Click to expand



The dialog box is used to configure the report in PDF format.

The box consists of the following tabs:

Document

Cover

Cameras

Other



To get a report you should adjust the settings on each tab, then click OK.




       Document



On the tab the common parameters of a PDF document are specified.



Page Width and Height in centimeters or inches

To change page orientation, invert Width and Height.



Page Margins,  in centimeters or inches;

Title, Author, Subject, Keywords.



In the Font (codepage) combobox a font for the document can be specified. The font must be TrueType. This can either be the name of the font as shown in the Windows\Fonts folder (for example "Times New Roman") or it can be the font family name with an optional style specifier in square brackets (for example "Times New Roman [BoldItalic]").

Possible optional specifiers are: [Bold], [Italic] or [BoldItalic].

A codepage can also be specified (for example "Arial [Bold] {1250}") which allows other encodings to be used.



If the report is in characters other than the Latin alphabet is not displayed correctly - select your codepage.



Possible code pages are:

{0} Direct mapping

{437} OEM_CHARSET

{850} OEM_CHARSET

{852} OEM_CHARSET

{874} THAI_CHARSET

{1250} EASTEUROPE_CHARSET

{1251} RUSSIAN_CHARSET

{1252} ANSI_CHARSET

{1253} GREEK_CHARSET

{1254} TURKISH_CHARSET

{1255} HEBREW_CHARSET

{1256} ARABIC_CHARSET

{1257} BALTIC_CHARSET

{1258} VIETNAMESE_CHARSET

{1361} JOHAB_CHARSET



Below, you can set the Font height in % of the height of the sheet and Line spacing.



If the Page Numbers checkbox is checked, at the bottom of report pages the page numbers will be printed.



The Headlines checkbox enables drawing horizontal lines on top and on bottom of each page.

Below you can specify Header and Footer.



       Cover



On the tab parameters of the cover sheet can be specified.



If the Cover checkbox is marked, the cover is included in the report.

If the Frame checkbox is marked, the frame is drawn on the cover.



If the Logo checkbox is marked, then any image can be drawn on the cover.

X (%), Y (%) - the position of the image on the sheet in % of the sizes of the sheet.

W (%), H (%) - the size of the image on the sheet, in % of the sizes of the sheet.

In the Path box the path to the image file can be entered. To select a file click on the button . Possible file formats: bmp, jpeg, gif, tif, png, wmf, emf.



Below there are 4 identical panels where you can specify blocks of text.

Checkboxes Text 1..Text 4 include corresponded blocks of text on the cover.

X (%), Y (%) - the position of the text on the sheet in % of the sheet size.

Height (%) - the height of the text on the sheet in % of the size of the sheet.

By clicking button, you can select color of the text block.

In the Alignment combobox you can select text alignment.



The text itself can be entered in the box at the bottom of each panel.

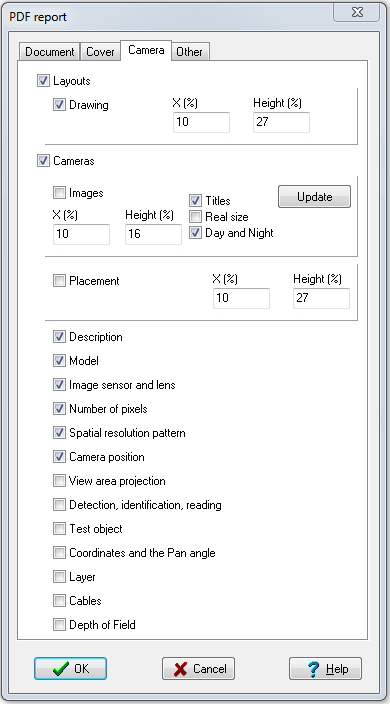

       Cameras



The tab is intended for adjusting information about the cameras that you want to include in the report.



If the Layouts checkbox checked, the report will include the names of layouts.

If the Drawing checkbox is marked, the report will include drawings of the layouts.

X (%), Height (%) - the position and height of the drawings on the sheet, in % of the size of the sheet.



If the Cameras checkbox is marked, the report will include parameters of cameras.



If the Images checkbox  is marked, the report will include images from the cameras.

X (%), Height (%) - the position and height of the images from the cameras on the sheet, in % of the size of the sheet.

If the Titles checkbox is marked , the images from the cameras will include titles.

If the Real size checkbox is marked, then the images from the cameras will be generated in real-size in pixels.

If the Day and Night checkbox is marked, the report will include 2 images for each camera: for day and night time.



Clicking on the button starts updating the stored images.

Generation of 3D images from cameras can be time consuming. To save time of repeated PDF report generation VideoCAD keeps generated 3D images from cameras in memory. To update the 3D images click the Update button



If the Placement checkbox is marked, then the report will include fragments of layouts with positions of the cameras.

X (%), Height (%) - the position and height of the fragments of the layouts on the sheet, in % of the size of the sheet.



If cameras occupy too small fragments of plans, reduce the Maximum distance of drawing view area in the camera parameters.



Below there are checkboxes, by which you can select the camera parameters that should be included in the report.



       Other



On the tab additional information in the report can be adjusted.



Cameras summary - the number of cameras, the number of used models of cameras, lens focal lengths, the camera resolutions in pixels, the total cost of the cameras (if the cost is assigned to the used camera models).



Cables summary - the sum of the lengths of the cables.

All line segments and cables made by line types with marked Cable box in the parameters of the line type will be calculated.

These line types are considered as cable brands. These line types can be assigned to the Signal cable and the Power cable of any camera.

You can simply draw cables as line segments on layouts using these line types. In this case, the cables are considered as main cables which are not attached to any camera.

The report includes the cables attached to cameras and the main cables as well. Cable lengths are calculated for each brand (line type) separately.



See also Cable report



Pixel density patterns - information about Pixel density patterns used in the project.



Date - the date and time of generating the report.
